1. Product-Specific Details
1.1 Specification Parameters

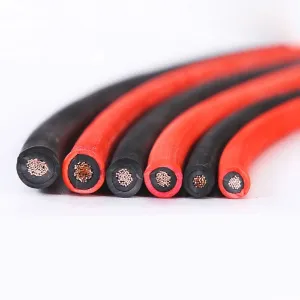

The outdoor
Solar Panel Wire (PV Cable) is engineered with precise specification parameters to meet the rigorous demands of DC power transmission in solar photovoltaic systems. At the core of its electrical specifications is a rated DC voltage of 1800V, a value determined through extensive analysis of mainstream PV system architectures. This voltage rating is optimized to accommodate the high DC voltage generated by the series connection of multiple PV modules, which is a common configuration in both small-scale rooftop systems and large-scale ground-mounted projects. By matching this operational voltage requirement, the cable effectively prevents insulation breakdown—a critical risk in underrated cables that can lead to short circuits, power outages, and even safety hazards such as electrical fires. Additionally, the cable’s voltage withstand capability extends beyond the rated 1800V, with a surge voltage tolerance that meets international standards, ensuring it can handle transient voltage spikes caused by factors like lightning strikes or sudden changes in solar irradiance.
In terms of current-carrying capacity, the cable is available in two distinct wire gauge options: 4 AWG and 6 AWG. These gauges are selected based on typical current demands in different PV system segments. The 4 AWG variant features a larger conductor cross-sectional area, translating to a higher ampacity (current-carrying limit). This makes it suitable for high-load applications where large volumes of current need to be transmitted, such as the main feeder lines connecting combiner boxes to central inverters in ground-mounted PV plants. The 6 AWG variant, with a smaller cross-sectional area, offers a moderate ampacity that aligns with the needs of low-to-medium load scenarios, including inter-module wiring in residential rooftop systems or branch lines in small commercial PV installations. The ampacity values for both gauges are tested under standard operating conditions (typically 25℃ ambient temperature) and are certified to remain stable even when the cable operates at its maximum temperature rating, ensuring no degradation in performance due to thermal stress.
Electrical resistance is another key parameter that directly impacts the cable’s energy efficiency. The high-purity electrolytic
Copper Conductors used in the cable contribute to a low DC resistance—measured in ohms per unit length. For the 4 AWG variant, the resistance is typically below 0.0008 ohms per meter, while the 6 AWG variant has a resistance of approximately 0.0013 ohms per meter. This low resistance minimizes power loss during transmission, a critical factor in PV systems where even small energy losses can accumulate over time and reduce the overall energy yield of the system. The cable’s insulation resistance, a measure of the insulation layer’s ability to resist leakage current, is equally impressive. Using specialized testing equipment, the insulation resistance is verified to exceed 1000 megaohms at 25℃, ensuring that negligible current leaks through the insulation, further enhancing energy efficiency and safety.
Mechanical specifications are tailored to the outdoor installation environment. The cable has a minimum bending radius—an important parameter for installation
Flexibility—of 6 times the cable’s outer diameter for fixed installations and 10 times the outer diameter for dynamic bending (e.g., during installation). This flexibility allows the cable to be routed around PV module frames, mounting brackets, and other obstacles without damaging the insulation or conductor. The cable also features a high tensile strength, with the 4 AWG variant capable of withstanding a maximum tensile load of 1500 Newtons and the 6 AWG variant up to 1000 Newtons. This tensile strength ensures the cable can withstand the mechanical stress of being pulled during installation, as well as the weight of the cable itself when suspended between PV modules or along mounting structures.
Thermal specifications further define the cable’s operational range. It has a continuous operating temperature range of -40℃ to 120℃, with a short-term overload temperature tolerance of up to 150℃ for durations of less than 5 seconds. This broad temperature range allows the cable to operate reliably in extreme climatic conditions, from the freezing winters of high-latitude regions to the scorching summers of desert areas. The cable’s temperature coefficient of resistance— a measure of how its electrical resistance changes with temperature—is also tightly controlled. For the
Copper Conductors, the temperature coefficient is approximately 0.00393 per ℃, ensuring that resistance increases linearly with temperature and remains predictable, allowing system designers to account for minimal performance variations in their energy yield calculations.
1.2 Distinctive Features and Applications
One of the most distinctive features of this PV cable is its dual-color (red-black) polarity identification system. This design is not merely a cosmetic choice but a critical safety and efficiency enhancement aligned with global PV installation standards. The red cable is universally designated for the positive pole, while the
Black Cable is for the negative pole—eliminating ambiguity during installation. Unlike unmarked or single-color cables that require time-consuming polarity testing with multimeters, this color-coding allows installation teams to complete wiring tasks quickly and accurately. The color pigments used in the sheath are formulated with UV-stable compounds, ensuring that the red and black hues do not fade, bleach, or blur even after decades of exposure to intense sunlight, rain, and temperature fluctuations. This long-term visibility of polarity markings simplifies maintenance, repair, and system expansion, as technicians can immediately identify connections without additional testing.
Another standout feature is the cable’s superior weather resistance, with a specific focus on UV protection and high-temperature durability. The outer sheath and insulation layer are manufactured using a proprietary blend of polymers (typically cross-linked polyethylene or polyolefin) infused with UV absorbers and stabilizers. These additives create a barrier that blocks harmful UV-A and UV-B radiation, preventing the polymer from undergoing photo-oxidation—a process that causes conventional cables to become brittle, crack, and lose insulation properties over time. Accelerated aging tests, conducted by exposing the cable to simulated sunlight (equivalent to 20 years of outdoor exposure) in environmental chambers, confirm that the sheath retains over 90% of its original tensile strength and flexibility. The high-temperature resistance, meanwhile, is achieved through cross-linking technology, which transforms the thermoplastic polymer into a thermosetting material. This cross-linked structure resists melting or softening at high temperatures, ensuring the insulation remains intact even when the cable is in direct contact with hot PV module surfaces (which can reach 60℃ to 80℃ during peak sunlight hours) or in enclosed spaces with limited ventilation.
The cable’s application range is broad and tailored to diverse PV system types. In residential rooftop PV systems, the 6 AWG variant is the primary choice for inter-module wiring. Its smaller diameter and moderate flexibility allow it to be routed through the narrow gaps between PV modules and along the edges of mounting frames without causing strain on connections. The UV resistance ensures it can withstand the constant sunlight exposure on rooftops, while the temperature range accommodates the daily thermal cycles of residential areas (from cool nights to warm days). For commercial rooftop systems—such as those installed on factory buildings or warehouse roofs—the 6 AWG variant is used for branch lines, while the 4 AWG variant handles the higher current from combiner boxes to inverters, which are often located at a greater distance from the array.
In ground-mounted PV power plants, the 4
AWG Cable is the standard for main feeder lines. These lines carry large currents from multiple combiner boxes to central inverters, often over distances of several hundred meters. The 4 AWG’s high ampacity and low resistance minimize power loss over these long distances, maximizing the plant’s energy output. The cable’s mechanical strength is also an advantage in ground-mounted systems, as it can withstand the stress of being pulled across open terrain during installation and resist damage from accidental contact with construction equipment. Additionally, the cable’s
Chemical Resistance—another key feature—makes it suitable for ground-mounted projects in harsh environments, such as coastal areas (where salt spray can corrode conventional cables) or agricultural regions (where exposure to fertilizers or pesticides is common). The sheath material is resistant to salt, acids, alkalis, and organic solvents, ensuring no degradation in performance even in these corrosive settings.
The cable also finds application in specialized PV projects, including floating PV systems and building-integrated photovoltaics (BIPV). For floating PV systems, which are installed on water bodies like lakes or reservoirs, the cable’s sheath is tested for water resistance and resistance to aquatic contaminants. It meets IP68 ingress protection standards, meaning it is completely dust-tight and can be submerged in water up to 1.5 meters deep for extended periods without water penetration. In BIPV systems, where PV modules are integrated into building facades or roofing materials, the cable’s flexibility and small profile (especially the 6 AWG variant) allow it to be hidden within the building’s structure, maintaining the aesthetic appearance of the BIPV installation while ensuring reliable power transmission.
1.3 Material Selection and Design Style
Material selection is a cornerstone of the PV cable’s performance, with each component chosen for its ability to withstand the unique challenges of outdoor PV environments. The conductor is made of high-purity electrolytic copper, with a purity level of 99.99%. This high purity is critical for minimizing electrical resistance, as impurities (such as iron, nickel, or oxygen) increase resistance and reduce current-carrying efficiency. The electrolytic copper is also annealed—a heat treatment process that softens the metal, improving its flexibility and making it easier to bend during installation without cracking. The conductor is stranded rather than solid, consisting of multiple small
Copper Wires twisted together. Stranding enhances the cable’s flexibility compared to solid conductors, which are rigid and prone to breaking when bent repeatedly. It also improves the conductor’s fatigue resistance, allowing it to withstand the slight movements caused by wind or thermal expansion/contraction of PV modules over time.
The insulation layer, which directly surrounds the conductor, is composed of cross-linked polyethylene (XLPE) or a high-performance polyolefin blend. XLPE is preferred for its exceptional electrical insulation properties and thermal stability. The cross-linking process—achieved through either chemical, radiation, or peroxide methods—creates strong chemical bonds between the polymer chains, transforming the material from a thermoplastic (which melts when heated) to a thermosetting (heat-resistant) material. This cross-linked structure gives XLPE a high continuous operating temperature (up to 120℃) and excellent resistance to thermal aging. The insulation layer has a precise thickness, typically 1.5mm for the 6 AWG variant and 2.0mm for the 4 AWG variant, ensuring it provides sufficient electrical insulation while keeping the cable’s overall diameter compact. The insulation is also tested for dielectric strength, with a minimum breakdown voltage of 10kV per mm—far exceeding the operational voltage of 1800V—providing a robust safety margin against insulation failure.
The outer sheath, which protects the insulation and conductor from external damage, is made of a UV-stabilized polyolefin or XLPE compound. This sheath material is selected for its combination of mechanical durability, weather resistance, and chemical resistance. It has a Shore D hardness rating of 60–70, a measure of its resistance to indentation, ensuring it can withstand minor impacts, abrasion from contact with PV frames or mounting hardware, and the pressure of being stepped on during installation. The sheath also contains carbon black or other UV stabilizers, which absorb or reflect UV radiation, preventing photo-degradation. Additionally, the sheath is formulated to be resistant to ozone—a reactive gas present in the upper atmosphere that can break down polymer materials—ensuring the cable remains intact in areas with high ozone levels, such as high-altitude regions or industrial zones.
In terms of design style, the cable follows a compact, streamlined profile that prioritizes functionality and ease of installation. The overall diameter is minimized to fit through the narrow cable channels and connectors of PV modules, which often have limited space for wiring. For the 6 AWG variant, the outer diameter typically ranges from 6mm to 8mm, while the 4 AWG variant has an outer diameter of 8mm to 10mm. The cable’s round cross-section ensures uniform stress distribution during bending and installation, reducing the risk of localized damage to the insulation or sheath. The red and black color coding is applied uniformly across the entire length of the sheath, with no variations in color intensity, ensuring consistent visibility from one end of the cable to the other.
Another design consideration is the cable’s flame retardancy. While outdoor PV cables are not typically exposed to indoor fire risks, they must meet flame propagation standards to prevent the spread of fire in case of an electrical fault. The insulation and sheath materials are rated to UL 94 V-0 or equivalent standards, meaning they self-extinguish within 10 seconds of being removed from a flame source and do not 滴落 flaming particles. This flame retardancy adds an extra layer of safety, particularly in PV systems installed near flammable materials, such as wooden rooftops or agricultural structures.
1.4 Production Process
The production process of the outdoor solar
Panel Wire is a highly controlled, multi-stage operation that adheres to strict quality standards to ensure consistency and performance. The process begins with the preparation of the copper conductor. High-purity electrolytic copper ingots are first melted in a controlled-temperature furnace (typically 1085℃, the melting point of copper) and cast into continuous copper rods with a diameter of approximately 8mm. These rods are then drawn through a series of diamond dies in a wire-drawing machine, which reduces their diameter to the required size for the individual strands of the conductor. The drawing process is accompanied by annealing, where the copper wires are heated to 300–400℃ to restore flexibility lost during drawing. The number of strands varies by gauge: the 4 AWG conductor typically consists of 19 strands, while the 6 AWG conductor uses 7 strands. These strands are then twisted together in a stranding machine at a precise lay length (the distance over which one strand completes a full twist around the center), which is optimized to balance flexibility and conductor stability.
Next comes the insulation extrusion process. The
Stranded Copper Conductor is fed into an extruder, where the
Insulation Material (XLPE or polyolefin) is melted and forced through a die that coats the conductor with a uniform layer of insulation. The extruder operates at a temperature range of 120–180℃, depending on the material, and the line speed is synchronized with the extrusion rate to ensure consistent insulation thickness. After extrusion, the
Insulated Conductor passes through a cooling tank filled with water or air to solidify the insulation. For XLPE insulation, an additional cross-linking step is required. This can be done using one of three methods: chemical cross-linking (where a cross-linking agent is added to the XLPE before extrusion, and the insulated conductor is heated in a curing tube to activate the agent), radiation cross-linking (where the insulated conductor is exposed to electron beam radiation to create cross-links between polymer chains), or peroxide cross-linking (similar to chemical cross-linking but uses peroxide as the cross-linking agent). Radiation cross-linking is often preferred for PV cables due to its precision and the absence of residual chemicals in the final product.
Once the insulated conductors are ready, the outer sheath is extruded. This step is similar to insulation extrusion but uses the UV-stabilized sheath material. The insulated conductor is fed into a second extruder, where the sheath material is melted and extruded over the insulation layer. The extruder die is sized to achieve the desired outer diameter and sheath thickness (typically 0.8–1.2mm). During this process, color masterbatches (red or black) are added to the sheath material to achieve the polarity-coding color. The color masterbatches are mixed uniformly with the base polymer to ensure consistent coloration throughout the sheath. After extrusion, the
Sheathed Cable is cooled in a second cooling tank and then passed through a diameter measurement system to verify that the outer diameter and sheath thickness meet specifications.
Quality control testing is integrated into every stage of the production process. Before extrusion, the
Copper Strands are tested for purity (using spectroscopic analysis) and tensile strength (using a tensile testing machine). During insulation and sheath extrusion, online thickness gauges (using laser or ultrasonic technology) monitor the insulation and sheath thickness in real time, with automatic adjustments to the extruder if deviations are detected. After production, samples from each batch undergo a battery of tests, including:
Electrical tests: Insulation resistance testing (using a megohmmeter), dielectric strength testing (applying high voltage to check for insulation breakdown), and DC resistance testing (measuring the conductor’s resistance to ensure it meets ampacity requirements).
Mechanical tests: Tensile strength and elongation testing (to verify the insulation and sheath’s ability to withstand stretching), impact resistance testing (dropping a weighted pendulum on the cable to check for sheath damage), and bending testing (repeatedly bending the cable to its minimum bending radius to ensure no cracking or insulation failure).
Environmental tests: UV resistance testing (exposing the cable to simulated sunlight in a weathering chamber for 1000 hours and checking for color fading or material degradation), high-temperature aging testing (heating the cable to 120℃ for 10,000 hours and testing electrical and mechanical properties), and chemical resistance testing (immersing the cable in saltwater, acids, or alkalis for specified periods and checking for damage).
After passing all quality control tests, the cables are wound onto spools or reels for storage and transportation. The winding process is done using a spooling machine that ensures the cable is wound evenly and tightly, with no tangles or kinks. Each spool is labeled with batch information, production date, wire gauge, color (red or black), and length, allowing for full traceability of each cable.
2. General Product Information
2.1 Packaging
The packaging of the outdoor solar panel wire is designed to protect the cable during storage, transportation, and handling while ensuring ease of use for customers. The primary packaging format is the cable spool, which is available in two sizes to accommodate different cable lengths: small spools (holding 100 meters or 200 meters of cable) and large reels (holding 500 meters or 1000 meters of cable). The spools are constructed from high-quality materials to withstand the weight of the cable and the rigors of transportation. Small spools are typically made of durable plastic (polypropylene or polyethylene), which is lightweight, corrosion-resistant, and recyclable. Large reels, which carry heavier loads, are made of wood (such as pine or birch) or steel. Wooden reels are reinforced with steel rims to prevent warping or cracking, while steel reels offer maximum
durability and are often reused for multiple shipments, aligning with sustainability goals.
Before winding the cable onto the spools, the spool surfaces are inspected to eliminate any sharp edges, splinters, or debris that could scratch or damage the cable’s sheath during winding or transportation. For plastic spools, the inner core is lined with a soft, non-abrasive material (such as foam or felt) to create a buffer between the cable and the spool, preventing friction-induced wear. For wooden reels, the inner and outer surfaces are sanded smooth, and any gaps or cracks are filled with a sealant to avoid snagging the cable.
The cable is wound onto the spools using a computer-controlled winding machine that maintains a consistent tension throughout the process. This ensures the cable is layered evenly, with no overlapping or loose sections that could cause tangling when the cable is unspooled during installation. The tension is calibrated based on the cable’s gauge: the 4 AWG cable, being thicker and stiffer, requires slightly higher tension (typically 50–60 Newtons) than the 6 AWG cable (30–40 Newtons) to ensure tight winding without stretching the conductor. After winding, the cable end is secured to the spool with a non-adhesive cable tie to prevent it from unwinding during handling.
To protect the cable from environmental damage during storage and transportation, each spool is wrapped in a multi-layer protective covering. The first layer is a transparent polyethylene film that adheres tightly to the cable surface, creating a barrier against dust, moisture, and minor abrasions. The second layer is a heavy-duty woven polypropylene bag, which provides additional mechanical protection against impacts and punctures. For large steel reels, an optional weatherproof tarp can be added, secured with bungee cords, to shield the cable from rain, snow, or direct sunlight during outdoor storage or open-air transportation.
Each spool is labeled with a comprehensive information tag, attached to the spool’s flange using a corrosion-resistant metal clip. The tag includes: product name (Outdoor Solar Panel Wire / PV Cable), rated voltage (DC 1800V), wire gauge (4 AWG or 6 AWG), polarity color (red for positive, black for negative), cable length (e.g., 100m, 500m), batch number, production date, expiration date of material certifications (if applicable), and the manufacturer’s name, address, and contact information. For international shipments, the label also includes hazard class information (if required), country of origin, and any necessary compliance markings (such as CE, UL, TÜV, or RoHS).
In addition to individual spool packaging, multiple small spools (typically 10–20 units) are packed into a corrugated cardboard carton for bulk transportation. The cartons are reinforced with double-walled construction and filled with foam inserts or air pillows to prevent the spools from shifting during transit. Each carton is labeled with the same product information as the individual spools, plus the number of spools inside and the total weight of the carton. Large steel or wooden reels are shipped individually, with their flanges protected by cardboard edge guards to prevent damage during loading and unloading.
2.2 Transportation
The transportation of the outdoor solar panel wire is managed through a structured logistics process that prioritizes the protection of the cargo, on-time delivery, and compliance with local and international transportation regulations. The first step in transportation planning is selecting the appropriate mode of transport, which depends on the shipment volume, destination, and delivery timeline.
For domestic shipments within a single country, road transportation is the most common choice, using fleet trucks equipped with flatbed or enclosed trailers. Flatbed trailers are preferred for large steel or wooden reels, as they allow for easy loading and unloading using cranes or forklifts. Enclosed trailers are used for small spools packed in cartons, providing additional protection against weather, dust, and theft. The trailers are inspected before loading to ensure they have a clean, level floor with no sharp objects or debris that could damage the packaging.
When loading the spools onto the trailer, specialized lifting equipment is used to avoid manual handling, which can lead to injury or damage. For large reels, a crane with a spreader bar (to distribute the load evenly across the reel’s flanges) is used to lift the reel and place it on the trailer. The reel is then secured to the trailer using heavy-duty steel chains and ratchet straps, attached to the trailer’s anchor points. The chains are positioned around the reel’s flanges, and the straps are tightened to prevent rotational movement or lateral shifting during transit. For small spools in cartons, the cartons are stacked on pallets (typically 1.2m x 1.0m wooden pallets) and secured with stretch wrap to keep them stable. The pallets are then loaded onto the trailer using a forklift and secured with straps to the trailer walls.
During transit, the driver is provided with a detailed route plan that avoids roads with excessive potholes, sharp turns, or low clearances (for large reels). The driver is also instructed to maintain a steady speed (typically 60–80 km/h for road transport) and avoid sudden accelerations, decelerations, or lane changes, which can cause the cargo to shift. For long-distance road trips (over 500 km), the driver is required to make regular stops (every 2–3 hours) to inspect the cargo and ensure the securing devices remain tight.
For international shipments, sea freight is the primary mode of transport for large volumes, while air freight is used for urgent orders or small quantities. Sea freight involves loading the spools into shipping containers (20-foot or 40-foot standard containers). Large reels are placed in the container first, secured to the container’s floor using wooden blocks and steel straps. Small spools in cartons are then packed around the reels, filling any empty space to prevent movement. The container is sealed with a tamper-proof seal before being transported to the port. Air freight requires the spools to be packed in lightweight, durable cartons that meet airline weight and size restrictions (typically no more than 30kg per carton and 1.5m in length). The cartons are loaded onto air cargo pallets and secured with netting to prevent shifting during flight.
Regardless of the transportation mode, the shipment is tracked in real time using a logistics management system. The system provides the manufacturer and customer with updates on the shipment’s location, estimated time of arrival (ETA), and any delays (such as customs holds or weather-related issues). If a delay occurs, the logistics team immediately notifies the customer and works to resolve the issue—for example, rerouting the shipment or arranging for expedited transport to meet the customer’s deadline.
Upon arrival at the destination, the cargo is unloaded using the same careful procedures as during loading. The customer is invited to inspect the shipment before signing the delivery receipt. The inspection involves checking the packaging for signs of damage (such as dents, tears, or water stains), verifying the number of spools against the delivery note, and confirming that the product information on the labels matches the order. If any damage is found, the customer notes it on the delivery receipt and takes photographs of the damaged packaging and product. The manufacturer is then notified immediately, and a claims process is initiated to replace the damaged goods or provide a refund, depending on the customer’s preference.
2.3 Shipping
The shipping process for the outdoor solar panel wire encompasses all activities from order confirmation to delivery, involving coordination between the manufacturer, sales team, logistics provider, and customer. It begins when the customer places an order, specifying the quantity, wire gauge, length, and delivery address. The sales team reviews the order to ensure it aligns with available inventory or production capacity. If the product is in stock, the order is processed immediately; if not, the sales team provides the customer with a production timeline (typically 7–14 days for standard orders) and confirms the delivery date.
Once the order is confirmed, the manufacturer’s warehouse team retrieves the required spools from inventory or coordinates with the production department to complete the manufacturing process. The spools are then moved to the shipping preparation area, where they are inspected again to ensure they meet quality standards (e.g., no damage to the cable or packaging, correct labeling). The warehouse team also prepares the necessary shipping documentation, including:
Commercial Invoice: Details the product description, quantity, unit price, total value, currency, and payment terms.
Packing List: Lists each item in the shipment (e.g., 5 x 4 AWG red cable spools, 100m each), including weight and dimensions.
Bill of Lading (BOL) for sea/road transport or Air Waybill (AWB) for air transport: Serves as a contract of carriage between the shipper (manufacturer) and carrier (logistics provider), and includes the shipment’s origin, destination, and tracking number.
Certificate of Compliance (CoC): Verifies that the product meets international standards (e.g., IEC 60228 for conductors, IEC 60811 for insulation) and includes test reports from the manufacturer’s quality control lab.
The logistics provider is then notified to arrange for pickup of the shipment from the manufacturer’s warehouse. The provider sends a driver with the appropriate vehicle (based on the shipment size) to collect the cargo. Before pickup, the warehouse team and driver sign a pickup receipt, confirming the quantity and condition of the goods.
Customs clearance is a critical step in international shipping. The logistics provider’s customs broker prepares the customs declaration form, which includes details of the shipment, tariff codes (e.g., HS code 7311.00 for
Insulated Copper Wire), and any applicable duties or taxes. The broker submits the declaration and supporting documents (invoice, packing list, CoO) to the customs authorities at the origin and destination countries. At the origin, customs inspects the documentation to ensure compliance with export regulations. At the destination, customs may inspect the shipment physically (randomly or based on risk assessment) to verify the goods match the declaration. Once customs clearance is approved, the shipment is released for delivery to the customer.
The final step in the shipping process is delivery to the customer’s specified address. The logistics provider coordinates with the customer to schedule a delivery time that is convenient (typically during business hours, 9 AM–5 PM). On the day of delivery, the driver contacts the customer 1–2 hours before arrival to confirm. Upon arrival, the customer inspects the shipment as described in the transportation section. If the shipment is in good condition, the customer signs the delivery receipt, which is returned to the manufacturer as proof of delivery. If there are any issues, the driver notes them on the receipt, and the manufacturer works with the customer to resolve them promptly.
After delivery, the manufacturer sends a follow-up email to the customer, thanking them for their order and requesting feedback on the shipping process (e.g., timeliness, condition of goods, driver professionalism). This feedback is used to improve the shipping process, such as partnering with more reliable logistics providers or enhancing packaging for better protection.
2.4 Samples
The provision of samples is an integral part of the sales and customer support process for the outdoor solar panel wire, allowing customers to evaluate the product’s quality, performance, and suitability for their specific PV projects before placing a bulk order. The manufacturer offers sample cables that are identical to the full-production products in terms of materials, specifications, and manufacturing processes, ensuring the sample accurately represents the final product.
Customers can request samples through multiple channels: direct contact with the sales team via phone or email, submission of a sample request form on the manufacturer’s website, or through authorized distributors. When a sample request is received, the sales team collects key information from the customer, including: desired wire gauge (4 AWG or 6 AWG), polarity color (red or black), sample length (standard length is 1–2 meters, but custom lengths up to 5 meters are available upon request), quantity of samples (typically 1–5 samples per customer), and shipping address (including contact person and phone number for delivery).
The samples are manufactured using the same production line and quality control processes as the bulk cable. For example, the copper conductor is made from the same high-purity electrolytic copper, the insulation and sheath from the same UV-stabilized polymers, and the color coding from the same UV-stable pigments. After production, each sample undergoes the same testing as bulk cable, including insulation resistance testing, tensile strength testing, and visual inspection for surface defects. This ensures the sample meets all performance specifications and provides the customer with reliable data for evaluation.
Once the samples are ready, they are packaged in a compact, protective envelope or small box. The sample is wrapped in a clear polyethylene film to protect it from dust and moisture, and a label is attached to the film with product details (gauge, color, length, batch number) and the manufacturer’s contact information. For multiple samples, each sample is wrapped individually and placed in a small cardboard box with foam padding to prevent movement during transit.
The shipping of samples is arranged based on the customer’s urgency. For domestic customers, standard courier services (with delivery in 1–3 business days) are used, while international customers can choose between standard (5–7 business days) or expedited (2–3 business days) shipping. The cost of samples is typically waived for potential bulk customers (e.g., customers planning to order 1000 meters or more), while a nominal fee (covering material and processing costs) is charged for small or repeat sample requests. Shipping costs may be borne by the manufacturer for qualified customers or by the customer, depending on the terms agreed upon during the sample request.
Along with the physical samples, the manufacturer provides a sample kit containing technical documentation to support the customer’s evaluation. This includes:
Technical Data Sheet (TDS): Details the product’s electrical, mechanical, and thermal specifications (e.g., rated voltage, ampacity, operating temperature range, insulation resistance).
Application Guide: Provides recommendations on how to install, handle, and maintain the cable in PV systems, including minimum bending radius and compatibility with PV connectors.
Compliance Certifications: Copies of relevant certifications (e.g., TÜV, UL, IEC) to verify the product meets international standards.
After the customer receives and tests the samples, the sales team follows up with a phone call or email to gather feedback. The feedback may include the customer’s assessment of the sample’s quality (e.g., flexibility, color clarity), performance in testing (e.g., insulation resistance, temperature tolerance), and suitability for their project. If the customer has questions or concerns, the sales team connects them with the technical support team to provide detailed explanations or additional testing data. This feedback loop helps the customer make an informed purchasing decision and allows the manufacturer to address any potential issues before a bulk order is placed.
2.5 After-Sales Service
The after-sales service for the outdoor solar panel wire is designed to support customers throughout the product’s lifecycle, from installation to end-of-use, ensuring maximum performance, minimal downtime, and customer satisfaction. The service is delivered by a dedicated team of technical engineers, customer support specialists, and logistics coordinators, available through multiple channels (phone, email, online chat, and on-site visits).
2.5.1 Technical Support
Technical support is available to customers 24/7 for urgent issues and during standard business hours (9 AM–6 PM, Monday–Friday) for non-urgent inquiries. Customers can contact the technical support team to seek guidance on installation, troubleshooting, or maintenance. The team provides step-by-step assistance, including:
Installation Guidance: Detailed instructions on how to handle the cable during installation (e.g., minimum bending radius, proper tensioning), how to connect the cable to PV modules, combiner boxes, and inverters (including compatibility with different connector types), and how to test the cable for polarity and continuity before system activation.
Troubleshooting Support: Assistance in identifying and resolving common issues, such as low insulation resistance (caused by moisture ingress or damage to the sheath), high conductor resistance (caused by poor connections or conductor damage), or polarity reversal (addressed by referencing the color-coding system). The team may request photos or test data from the customer to diagnose the issue accurately and provide a targeted solution.
Maintenance Recommendations: Customized maintenance plans based on the customer’s PV system location (e.g., coastal areas require more frequent inspections for salt corrosion) and operating conditions (e.g., high-temperature regions need annual thermal testing). The recommendations include frequency of visual inspections (every 6–12 months), electrical testing (every 2–3 years), and cleaning procedures (using a soft brush and mild detergent to remove dust and debris from the cable surface).
For complex issues that cannot be resolved remotely, the technical support team can dispatch a field engineer to the customer’s site. The engineer carries specialized testing equipment (e.g., insulation resistance testers, thermal imaging cameras) to conduct on-site diagnostics, perform repairs (such as replacing a damaged cable section), or provide hands-on training to the customer’s maintenance team.
2.5.2 Warranty Service
The manufacturer offers a comprehensive warranty for the outdoor solar panel wire, covering defects in materials and workmanship for a period of 10 years from the date of delivery. The warranty is valid for customers who have purchased the cable directly from the manufacturer or authorized distributors and have installed the cable in accordance with the manufacturer’s installation guidelines.
To file a warranty claim, the customer must notify the after-sales service team within 30 days of discovering the defect, providing: order number, delivery date, batch number (from the spool label), photos or videos of the defect, and a detailed description of the issue (including when and how the defect was discovered). The team then reviews the claim and may request additional information, such as test reports from a third-party lab (if the defect is complex).
If the claim is approved, the manufacturer offers one of the following resolutions:
Replacement: The defective cable is replaced with a new cable of the same specification, free of charge. The manufacturer arranges for the delivery of the replacement cable using expedited shipping to minimize downtime. The customer is responsible for returning the defective cable (at the manufacturer’s expense) for further analysis.
Repair: For minor defects (e.g., localized sheath damage), the manufacturer provides a repair kit (including heat-shrink tubing, waterproof sealant, and application tools) along with step-by-step repair instructions. The kit is shipped free of charge, and the technical support team is available to guide the customer through the repair process via phone or video call. If the customer prefers professional repair, the manufacturer can arrange for a field engineer to visit the site and complete the repair at no additional cost.
Refund: In rare cases where replacement or repair is not feasible (e.g., widespread defects affecting the entire shipment), the manufacturer offers a full refund of the purchase price. The refund is processed within 5–7 business days of the claim approval, and the customer is instructed to return the defective goods (at the manufacturer’s expense) for disposal in compliance with environmental regulations.
The warranty explicitly excludes defects caused by improper installation (e.g., bending the cable below the minimum bending radius, using incompatible connectors), misuse (e.g., exposing the cable to chemicals not specified in the product’s chemical resistance guidelines), neglect (e.g., failing to perform recommended maintenance), or external events (e.g., natural disasters, vandalism, or accidental damage from construction equipment). To ensure warranty validity, the customer is required to retain all installation records, maintenance logs, and delivery receipts for the duration of the warranty period.
2.5.3 Recycling and Environmental Services
In line with global sustainability goals and the circular economy principles, the manufacturer offers recycling and environmental services for end-of-life or defective outdoor solar panel wires. This service addresses the environmental impact of cable disposal, as traditional disposal methods (such as landfilling) can lead to polymer pollution and resource waste.
For customers with end-of-life cables (typically after 25–30 years of service, the average lifespan of PV systems), the manufacturer provides a structured recycling program. Customers can contact the after-sales service team to schedule a pickup of the old cables. The team coordinates with certified recycling partners to collect the cables, ensuring compliance with local waste management regulations (such as the EU’s Waste Electrical and Electronic Equipment (WEEE) Directive or similar regional standards).
The recycling process involves separating the cable’s components for reuse or proper disposal. The copper conductors are stripped from the insulation and sheath, melted down, and refined into high-purity copper ingots that can be reused in the production of new cables or other copper-based products. The insulation and sheath materials (XLPE or polyolefin) are shredded, cleaned, and processed into polymer pellets, which are used to manufacture secondary plastic products (e.g., plastic pallets, construction materials) or blended with new polymers for non-critical components of new cables. Any non-recyclable materials (e.g., small amounts of additives) are disposed of in licensed facilities using environmentally friendly methods, such as energy recovery through controlled incineration.
After recycling, the manufacturer provides the customer with a Recycling Certificate, which documents the quantity of cables recycled, the percentage of materials recovered (typically 90% or higher for copper and 70% or higher for polymers), and the environmental benefits (e.g., reduction in carbon emissions compared to landfilling, conservation of raw materials). This certificate is useful for customers seeking to meet corporate sustainability targets or comply with environmental reporting requirements.
For defective cables returned as part of warranty claims or sample programs, the manufacturer follows the same recycling process. Defective cables are not resold or repurposed for use in PV systems; instead, they are disassembled and recycled to recover valuable materials, minimizing waste and reducing the product’s overall environmental footprint.
2.5.4 Customer Feedback and Continuous Improvement
The manufacturer views customer feedback as a critical driver of product and service improvement, integrating a structured feedback mechanism into the after-sales service process. This mechanism ensures that customer insights are collected, analyzed, and translated into actionable changes to enhance the outdoor solar panel wire and related services.
Feedback is collected through multiple touchpoints throughout the customer lifecycle:
Post-Delivery Feedback: Within 7 days of delivery, customers receive an automated email survey asking about their experience with the shipping process (e.g., timeliness, packaging quality, driver communication) and initial impressions of the product (e.g., packaging condition, label clarity). The survey uses a 5-point Likert scale for quantitative feedback and includes open-ended questions for qualitative comments.
Post-Installation Feedback: 30–60 days after delivery (to allow time for installation), the sales team conducts a follow-up call or email to gather feedback on the cable’s performance during installation (e.g., flexibility, ease of stripping, compatibility with connectors) and any challenges encountered. This feedback is particularly valuable for identifying issues with installation-related design features (e.g., sheath thickness, conductor stranding).
Warranty and Maintenance Feedback: After a warranty claim or maintenance service is resolved, the customer is asked to rate their satisfaction with the resolution process (e.g., speed of response, effectiveness of the solution, professionalism of the technical team). This feedback helps identify bottlenecks in the warranty or maintenance workflow, such as delays in claim approval or gaps in technical support.
Long-Term Performance Feedback: For customers with large-scale installations, the manufacturer conducts annual check-ins to gather feedback on the cable’s long-term performance (e.g., insulation integrity, color stability, current-carrying capacity). This feedback is used to validate the product’s durability claims and identify potential improvements for future product iterations.
All feedback is compiled into a centralized database and analyzed quarterly by a cross-functional team consisting of members from product development, production, sales, and customer support. The team identifies trends and patterns in the feedback—for example, repeated comments about difficulty stripping the sheath may indicate a need to adjust the sheath’s hardness, while feedback about delayed warranty claims may point to inefficiencies in the claim review process.
Actionable improvements are prioritized based on their impact on customer satisfaction and alignment with business goals. For example:
If feedback reveals that customers struggle with identifying the cable’s polarity in low-light conditions, the manufacturer may add reflective markers to the sheath (in addition to the red-black color coding) to enhance visibility.
If multiple customers report that the cable’s insulation becomes brittle in extremely cold climates, the product development team may reformulate the insulation material with additional plasticizers to improve low-temperature flexibility.
If feedback highlights delays in international shipping, the logistics team may partner with additional freight forwarders or optimize the customs documentation process to reduce clearance times.
The manufacturer communicates the results of feedback analysis and the resulting improvements to customers through annual newsletters, product update notifications, and direct follow-ups with customers who provided critical feedback. This transparency demonstrates the manufacturer’s commitment to listening to customers and continuously enhancing the product and service offering. For example, a customer who reported a sheath damage issue may receive an email notifying them of the new sheath formulation and inviting them to test the updated product for their next project.
3. Conclusion
The outdoor solar panel wire (DC 1800V PV Cable) is a high-performance, durable solution tailored to the unique demands of PV power transmission, with specifications, materials, and design features optimized for outdoor use. From its 1800V DC voltage rating and dual-gauge options to its UV-resistant sheath and red-black polarity coding, every aspect of the product is engineered to ensure safety, efficiency, and longevity. The rigorous production process, combined with comprehensive packaging, transportation, and shipping protocols, ensures that the cable reaches customers in pristine condition, ready for installation.
The manufacturer’s commitment to customer support extends beyond product delivery, with robust after-sales services including 24/7 technical support, a 10-year warranty, recycling programs, and a customer feedback-driven improvement process. These services not only address immediate customer needs but also foster long-term partnerships, ensuring that customers can rely on the product and support throughout the entire lifecycle of their PV systems.
For PV system integrators, installers, and end-users seeking a reliable, efficient, and sustainable cable solution, this outdoor solar panel wire meets and exceeds industry standards, making it a preferred choice for residential, commercial, and utility-scale PV projects worldwide.
